Copy & paste import

Copy & paste import allows you to import metadata into Dataedo by pasting tab-delimited data from a spreadsheet. This is useful when you have data in Excel or can export it from your source system.

useful tip

Copy & paste import uses the same schema as Interface Tables. For detailed column reference, valid object types, and lineage rules, see the Interface Tables documentation.

What type of import to choose

If your data source does not have a native metadata scanner and you either can export the metadata to a file or have preexisting documentation, consider pasting the metadata directly to Dataedo.

Dataedo supports two ways of adding this data:

• Interface Tables
• Copy & paste import

Use Interface Tables when:

• It's more convenient for you to input data directly into the database
• You don't intend to use and maintain the Excel file
• You want to automate the import process with scripts

Use copy & paste when:

• It's more convenient for you to use UI
• You have the data handy in Excel
• You want quick, one-time imports

Start copy & paste import

Start by adding new connection to your repository.

Paste Metadata can be found within the generic connector group.

Choose specific copy & paste connector

Use Paste Metadata for importing:

• Tables and views
• Procedures and functions

Use Paste Metadata Reporting for importing:

• Reports and dashboards
• Datasets

These connectors differ based on the type of data they import, but they both support documenting the same elements:

• Columns
• Parameters
• Triggers
• Primary and unique keys
• Foreign keys
• Data lineage
• Lineage processes
• Linked sources

Available tabs and columns

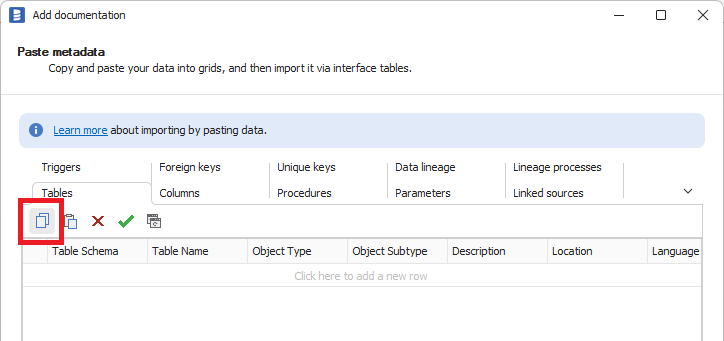

Each tab corresponds to an interface table. Use the Copy template button on each tab to copy column headers to your clipboard, then paste them into your spreadsheet as a starting point.

Paste Metadata connector

Tab	Key Columns	Required Fields
Tables	TableSchema, TableName, ObjectType, ObjectSubtype, Description, Definition	TableName, ObjectType, ObjectSubtype
Columns	ObjectSchema, ObjectName, ObjectObjectType, ColumnName, DataType, Nullable	ObjectName, ObjectObjectType, ColumnName
Procedures	ProcedureSchema, ProcedureName, ObjectType, ObjectSubtype, Definition	ProcedureName, ObjectType, ObjectSubtype
Parameters	ObjectSchema, ObjectName, ObjectObjectType, ParameterName, ParameterMode, DataType	ObjectName, ObjectObjectType, ParameterName, ParameterMode
Triggers	TableSchema, TableName, TableObjectType, TriggerName, TriggerType, Before, After, OnInsert, OnUpdate, OnDelete	TableName, TableObjectType, TriggerName, TriggerType
Keys	TableSchema, TableName, TableObjectType, KeyName, KeyType, ColumnName	TableName, TableObjectType, KeyType, ColumnName
Foreign Keys	ForeignTableSchema, ForeignTableName, PrimaryTableSchema, PrimaryTableName, ForeignColumnName, PrimaryColumnName	ForeignTableName, PrimaryTableName, ForeignColumnName, PrimaryColumnName
Data Lineage	SourceDatabaseName, SourceObjectName, SourceObjectType, ProcessorObjectName, ProcessorObjectType, TargetDatabaseName, TargetObjectName, TargetObjectType	All source, processor, and target fields
Lineage Processes	ProcessorObjectSchema, ProcessorObjectName, ProcessorObjectType, ProcessorProcessName, Description	ProcessorObjectName, ProcessorObjectType
Linked Sources	LinkedSourceName, ConnectionDetails, SqlDialect, Description	LinkedSourceName

Paste Metadata Reporting connector

The Reporting connector includes additional tabs and external ID fields:

Tab	Key Columns	Required Fields
Datasets	ExternalId, TableSchema, TableName, ObjectSubtype, Description	TableName, ObjectSubtype
Reports	ExternalId, ReportSchema, ReportName, ObjectType, ObjectSubtype, Url, Description	ReportName, ObjectType, ObjectSubtype
Columns	ObjectExternalId, ObjectSchema, ObjectName, ObjectObjectType, ColumnName, ColumnExternalId	ObjectName, ObjectObjectType, ColumnName
Parameters	ObjectExternalId, ObjectSchema, ObjectName, ObjectObjectType, ParameterName, ParameterMode	ObjectName, ObjectObjectType, ParameterName, ParameterMode

External ID for lineage

When importing BI objects (datasets, reports, dashboards), use ExternalId to uniquely identify objects. Data lineage to these objects must include the corresponding external_id columns. See Object matching for lineage for details.

Valid object types

All type values must be UPPERCASE. See Valid object types for the complete reference.

Quick reference

Tab	ObjectType Values	ObjectSubtype Examples
Tables	TABLE, VIEW, STRUCTURE, DATASET	TABLE, EXTERNAL_TABLE, MATERIALIZED_VIEW, CSV, JSON
Procedures	PROCEDURE, FUNCTION	PROCEDURE, CLR_PROCEDURE, FUNCTION, CLR_FUNCTION
Reports	REPORT, DASHBOARD, VISUALIZATION	REPORT, POWER_BI_REPORT, DASHBOARD
Triggers	TRIGGER	TRIGGER, CLR_TRIGGER, RULE

Keys and parameters do not use the ObjectType/ObjectSubtype pattern:

Tab	Field	Valid Values
Keys	key_type	PK, UK
Parameters	parameter_mode	IN, OUT, INOUT

Import steps

Copy headers to clipboard

Every tab has its own Copy template button.

Prepare your data

Paste the template into your spreadsheet and populate the cells.

Paste data into Dataedo

Each tab has its own Paste data button.

Correct your data if it fails validation

Every row needs to be valid to proceed with the import. Ensure data is correct by clicking the Validate button or pasting data into the tab. You can check for errors in the tooltip.

We recommend correcting the data in the Excel file first. Then, you can remove all rows by selecting all rows in Dataedo, pressing Ctrl + A, and then clicking the delete button. After that, paste the data again.

Common validation errors

Error	Cause	Solution
Required field is empty	Missing value in required column	Fill in the required field (e.g., TableName, ObjectType)
Invalid ObjectType	Type value not recognized or not uppercase	Use valid uppercase type (e.g., TABLE, VIEW, PROCEDURE)
Invalid ObjectSubtype	Subtype not valid for the given ObjectType	Check valid subtypes for your ObjectType
Object not found	Column references non-existent table/procedure	Add the parent object first (paste Tables before Columns)
Duplicate object	Same object pasted twice	Remove duplicate row or use different schema/name
Invalid ParameterMode	Mode not IN, OUT, or INOUT	Use uppercase: IN, OUT, INOUT
Invalid KeyType	Key type not PK or UK	Use PK for primary key, UK for unique key
Column not found	FK/Key references non-existent column	Add the column to Columns tab first
Database not found	Lineage references unknown database	Add linked source or import the referenced database first

Paste order

When pasting data across multiple tabs, follow this order to avoid validation errors:

1. Tables (or Datasets/Reports for Reporting connector)
2. Columns
3. Procedures
4. Parameters
5. Triggers
6. Keys and Foreign Keys
7. Linked Sources
8. Data Lineage
9. Lineage Processes

Import

Metadata will be uploaded to Interface Tables, and the import process will continue as usual.

You can select additional import options or keep clicking the "Next" button.

Import changes

When importing changes to an existing database created by pasting, you must paste all the data again. Otherwise, objects existing in the documentation but not pasted will be marked as deleted.

See also

• Interface Tables - Full column reference and detailed documentation
• Interface Tables Example - Complete multi-database pipeline example
